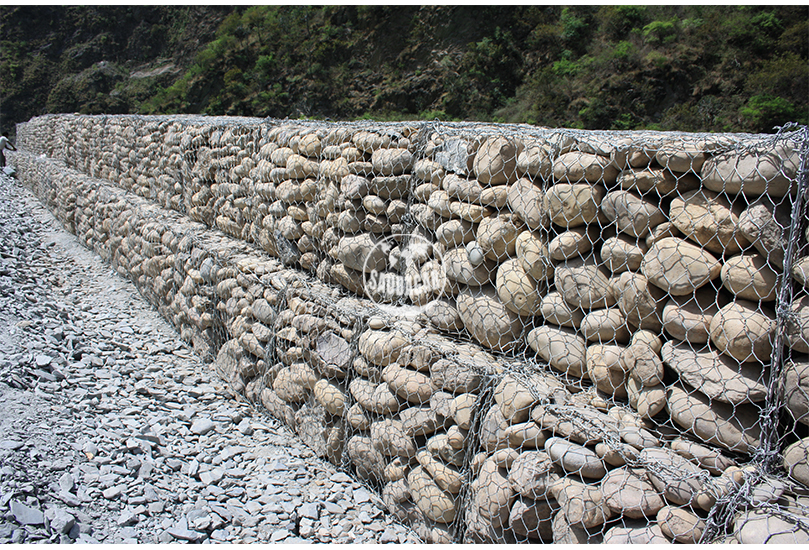

Gabion Box

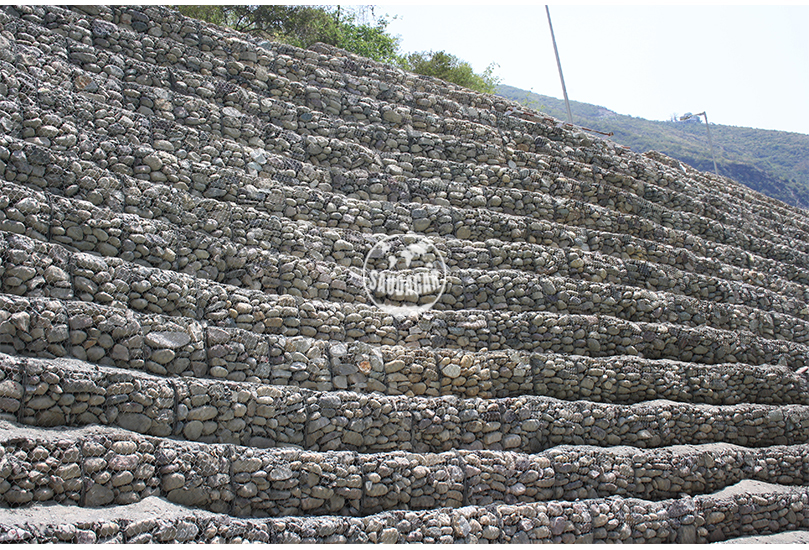

Gabion is a double twisted wire mesh container of variable size, uniformly partitioned into internal cells, interconnected with other similar units and filled with stones at the project site to form flexible, monolithic structures such as retaining walls, sea walls, channel linings, revetments for erosion control projects.



Mesh Size available:

  • 100mm X 120mm
  • 80mm X 100mm
  • 60mm X 80mm
  • 50mm X 70mm

Advantages of gabion boxes

Gabions have a number of advantages over other types of construction materials, particularly for installations on unstable foundations.


Gabion boxes and mattresses are made of hexagonal double twisted wire mesh which provide adequate strength to the structure to withstand forces generated by retained earth and flowing water.


The flexibility of the double twisted hexagonal mesh helps in withstanding differential settlement without fracturing the structure particularly when a structure is installed on unstable and uneven ground or in an area where scours from waves or currents which could undermine etc.


The permeable nature of the gabion eliminates build-up of hydrostatic pressure behind the retaining structure and also uplifts caused by turbulent flows. Hence the thickness of the required structure is significantly reduced.


Gabion structures are heavy monolithic gravity units which are able to withstand earth's thrust. Its efficiency increases instead of decreasing with age as since further consolidation takes place in the form of as silt and soil collected on the voids and so vegetation establishes itself.


Gabion boxes and mattresses are more cost effective and efficient structures compared to any other rigid structures of similar function.

  • It can be installed on a reasonably plain surface, does not require heavy foundation preparations.
  • It does not require skilled labour due to its simple construction and assembly at site.
  • It does not require any permanent drainage system.
  • Ease of handling of large elements results in substantial increase in speed of construction, accelerating completion dates.


Gabion structures permit the growth of vegetation and maintain the existing environment.

Why Saudagar Gabions?

  • High Quality Product by the specialist in the wire Industry for many decades.
  • Supply ISI marked Gabion boxes.
  • Wide range of Box sizes to meet the exact requirement.
  • Early delivery
  • Less freight anywhere in the country as factory is located centrally in our country.
  • Procures the best raw material in the country.
  • All indigenous materials are used.

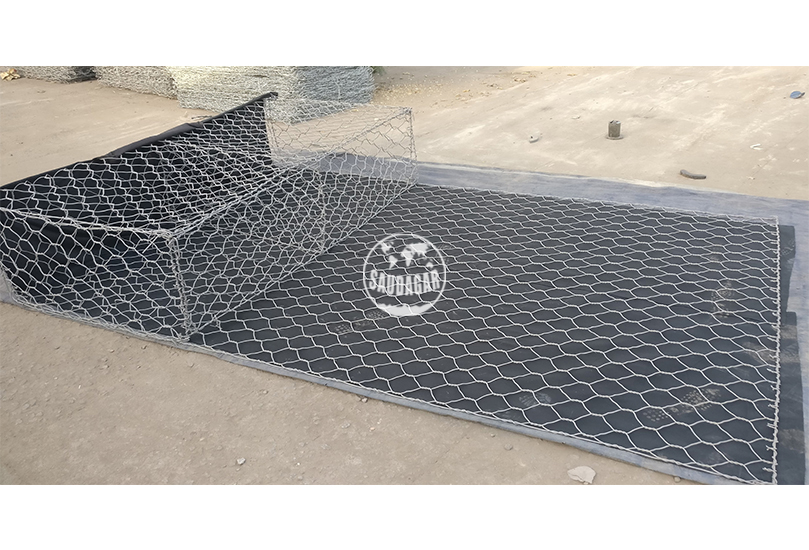

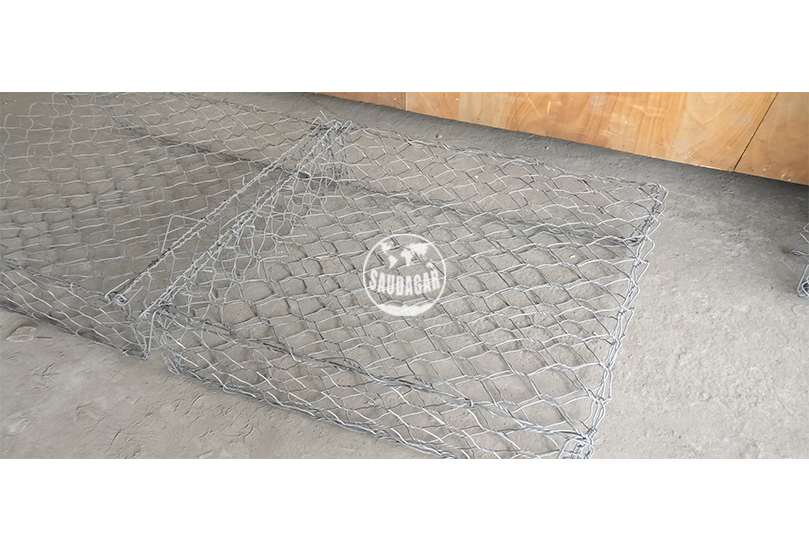

Revet Mattress

Revet mattress is a double twisted wire mesh container uniformly partitioned into internal cells relatively of small height in relation to other dimensions, having smaller mesh openings than the mesh used for gabions; Revet mattress are generally used for river bank protection and channel linings.

Mesh Size:

  • 50mm X 70mm
  • 60mm X 80mm
  • 80mm X 100mm
  • 100mm X 120mm

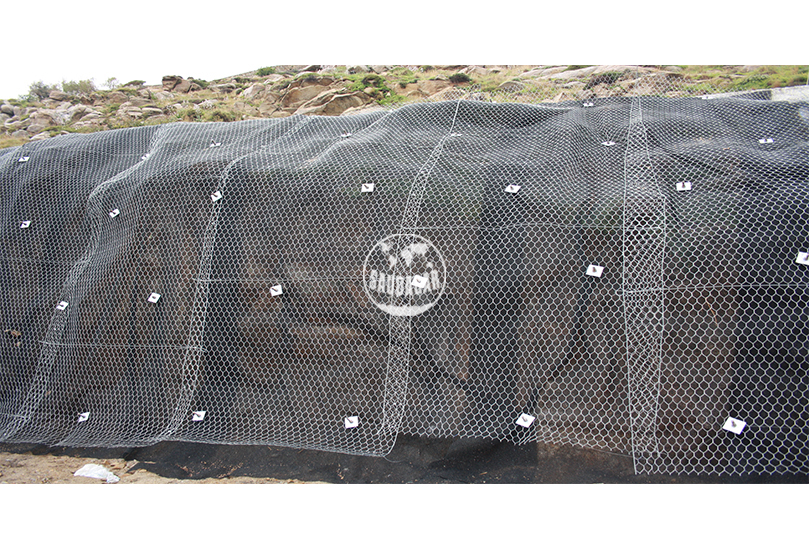

Rock Shield Netting

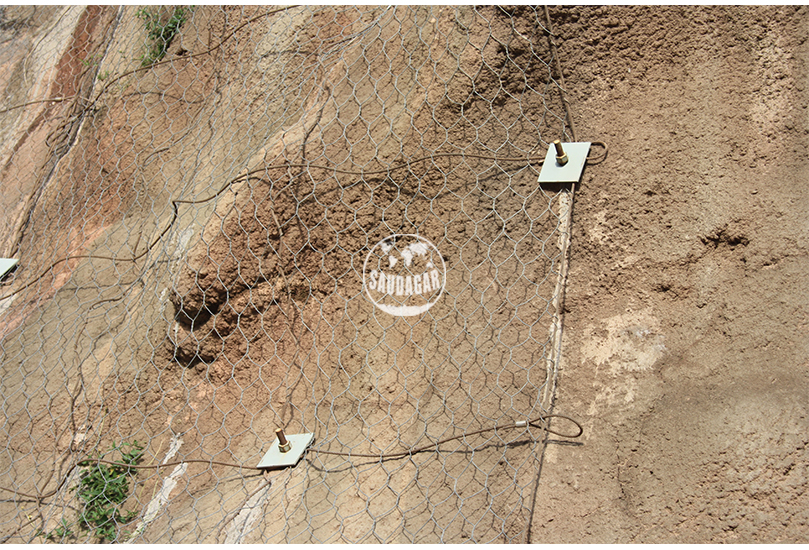

Saudagar's High-Resistance Rock Shield Netting is ideally suited for difficult solutions to rock face problems, since the double-twist, hexagonal-woven mesh do not unravel when some wires break. This is achieved by joining together rolls of mesh fabric with lacing wire and using it as a blanket to cover slopes obstructing rock falls. Fractured stones are trapped and confined against the slope should isolated wires fatigue from prolonged stress. This solution can also help in establishing and protect infrastructure.

Additionally, this double-twisted hexagonal type of netting has the high mechanical resistance required to prevent the danger of sudden rock shock loads and dissipate rock fall energy created from loose fractured rock.

The widening of existing roads and the opening of new roads and highways must accommodate modern transportation demands. For this reason we are faced with the problems of protecting the road side from rock slides in a safe and efficient manner.

Mesh Size:

  • 50mm X 70mm
  • 60mm X 80mm
  • 80mm X 100mm
  • 100mm X 120mm


Geosynthetics are synthetic products used to stabilize terrain. They are generally polymeric products used to solve civil engineering problems.  The polymeric nature of the products makes them suitable for use in the ground where high levels of durability is required.

1) Geotextiles

They are textiles consisting of synthetic fibres rather than natural ones such as cotton, wool, or silk. This makes them less susceptible to bio-degradation. These synthetic fibres are made into flexible, porous fabrics by standard weaving machinery or are matted together in a random non-woven manner. The fabric always performs at least one of four discrete functions: separation, reinforcement, filtration, and/or drainage.

  • 100 GSM
  • 200 GSM
  • 300 GSM
  • 500 GSM
  • 700 GSM

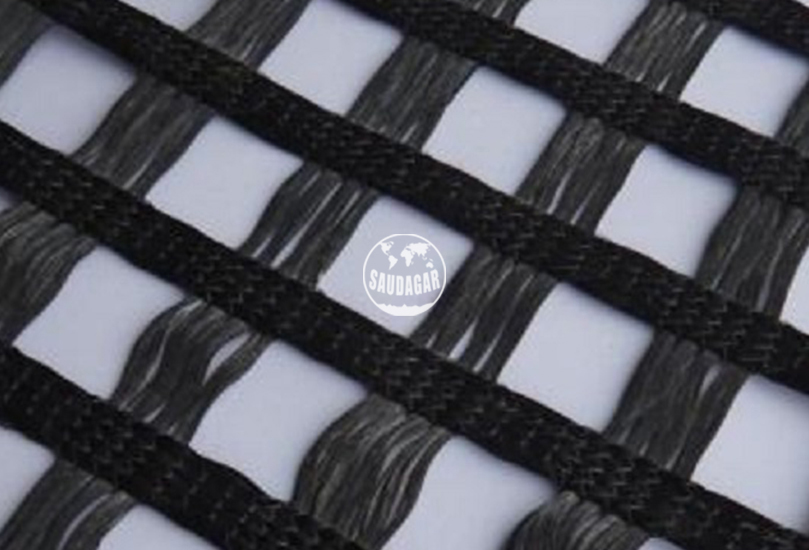

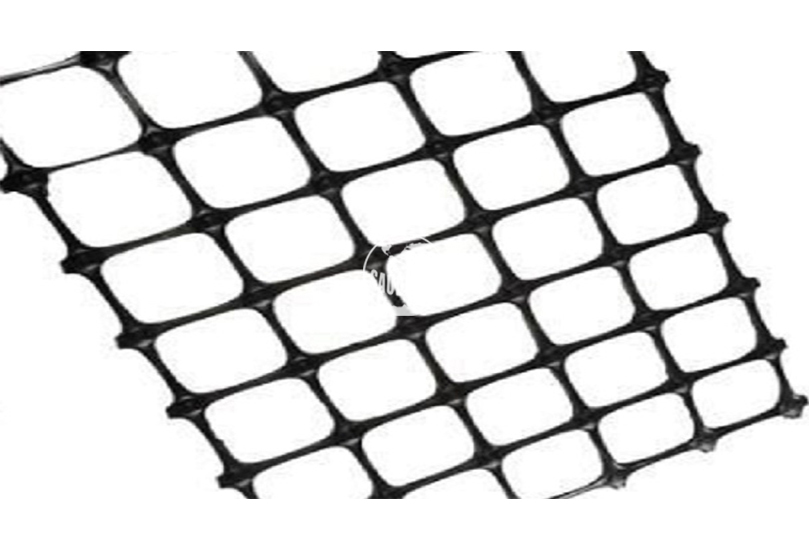

2) Geogrids

Geogrids are used to prevent sliding on long and steep slopes during installation and use of a landfill capping system.

Geogrids are polymers formed into a very open, grid like configuration, i.e., they have large apertures between individual ribs in the transverse and longitudinal directions. Geogrids are either stretched in one, two or three directions for improved physical properties. Geogrids function almost exclusively as reinforcement materials.

3) Geomembranes

The materials themselves are relatively thin, impervious sheets of polymeric material used primarily for linings and covers of liquids- or solid-storage facilities. This includes all types of landfills, surface impoundments, canals, and other containment facilities. Thus the primary function is always containment as a liquid or vapour barrier or both.

4) Geocells

Geocells (also known as Cellular Confinement Systems) are three-dimensional honeycombed cellular structures that form a confinement system when in filled with compacted soil. Geocells made from advanced polymers are being increasingly adopted for long-term road and rail load support. Much larger geocells are also made from stiff geotextiles sewn into similar, but larger, unit cells that are used for protection bunkers and walls. Traditionally used in slope protection and earth retention applications.

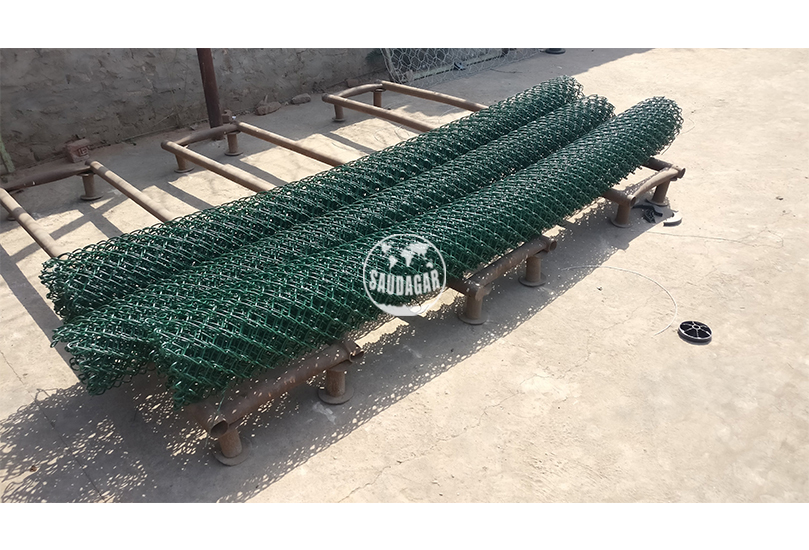

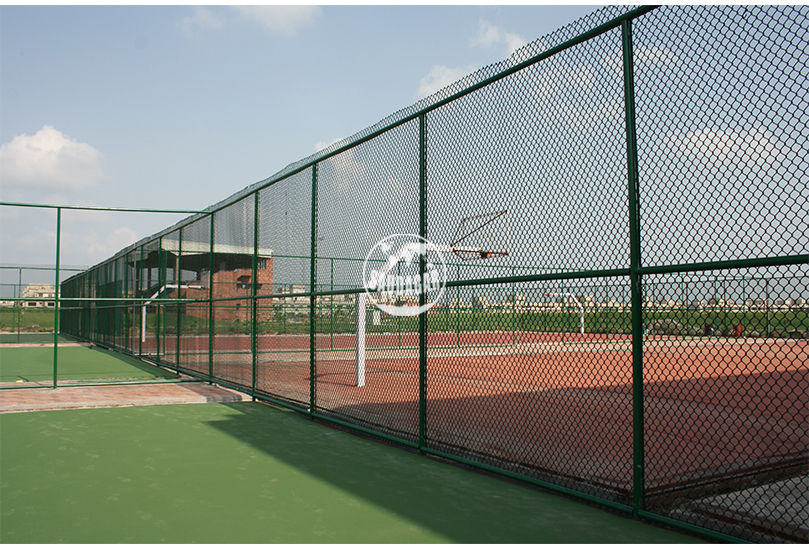

Chain Link Fencing

Chain Link Fencing fabric is a fencing material made of steel wire helically wound and inter woven in such a manner as to provide a continuous mesh without knots or ties except in the form of knuckling or twisting the ends of the wires to form the selvage of the fabric

It is the latest in fencing material and is most economical concept in modern fencing. It lasts a lifetime and can be easily installed and reinstalled by securely affixing it to reinforced cement poles, angle iron poles, pipe poles or wooden poles.

It is manufactured in G. I. wire, PVC (Vinyl) Coated wire, Aluminium Alloy wire or Stainless Steel wire. The mesh size for fencing purpose varies from 1" to 4" mesh and from 14 gauge wire to 6 gauge wires. The height can be from 2ft to 14ft as per application requirement.

We at Saudagar Mal Mamman Lal Pvt. Ltd. manufacture Chain Link Fencing completely automatic both in square and diamond mesh. The packing can be in conventional rolls or compacted rolls.


Chain Link Fencing is made from:
  • Galvanized Steel wire (As per IS 2721)
  • PVC Coated Steel wire (As per ASTM) in Square Mesh & Diamond Mesh

Standard Dimensions for GI Chain Link Fencing
  • a = Mesh Size = 25mm, 50mm, 75mm
  • a = Mesh Size = 25mm, 50mm, 75mm


  • Airports
  • Highways & Expressways
  • Power Stations
  • Industrial Complexes
  • Swimming Pools
  • Orchards/Gardens
  • Play Ground
  • Farms Houses
  • Cricket Fields
  • Zoological Parks
  • Stadium
  • Tennis Courts

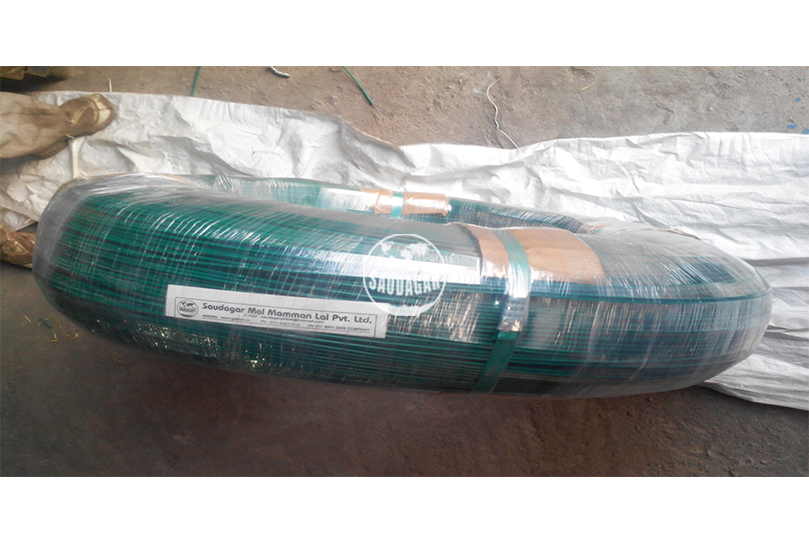

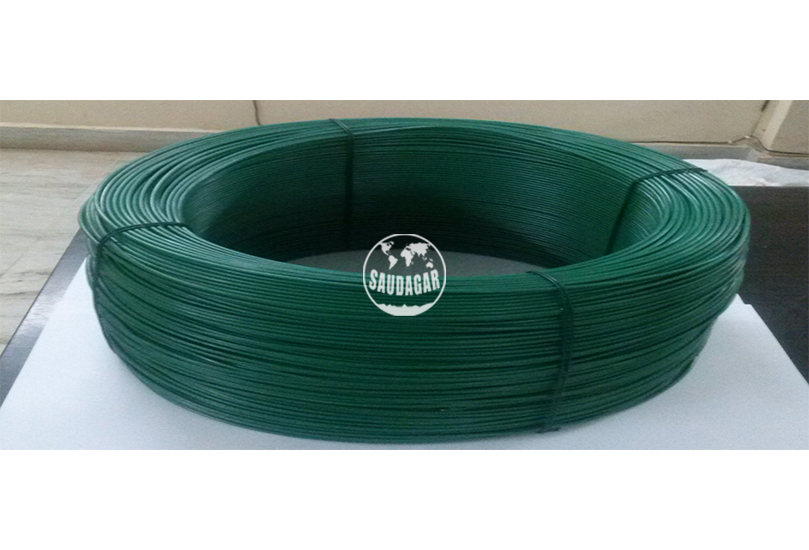

PVC Coated Wire

The most popular use for PVC coated wire is in the Construction of Chain Link Fences for Industrial. Residential security fences for freeways/highways and tennis courts.

The other popular and growing use of this Products is for the manufacture of Gabion Boxes, Gabion Mattresses etc. for construction of Retaining wall, Channel lining, strengthening of river/sea beds erosion control

PVC Coated wire is also used in other applications such as coat hangers, animal breeding, Agriculture, forestry protection. Aquiculture, parks.

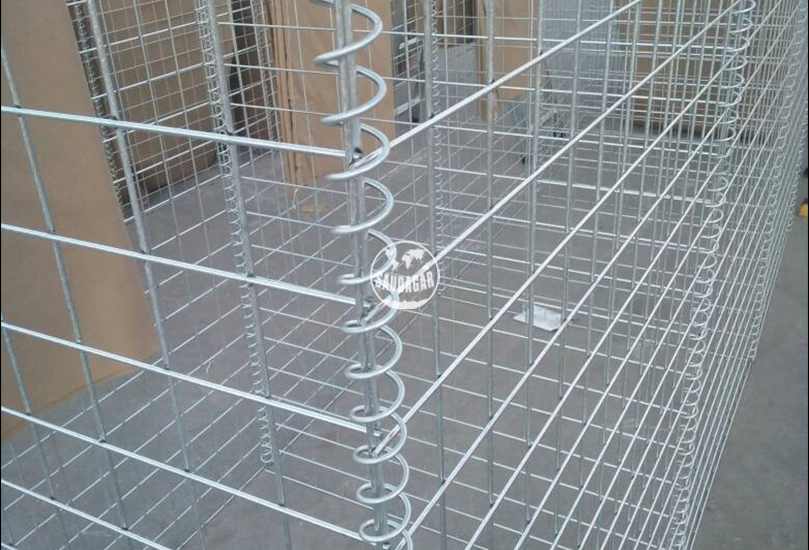

Welded Wire Gabion

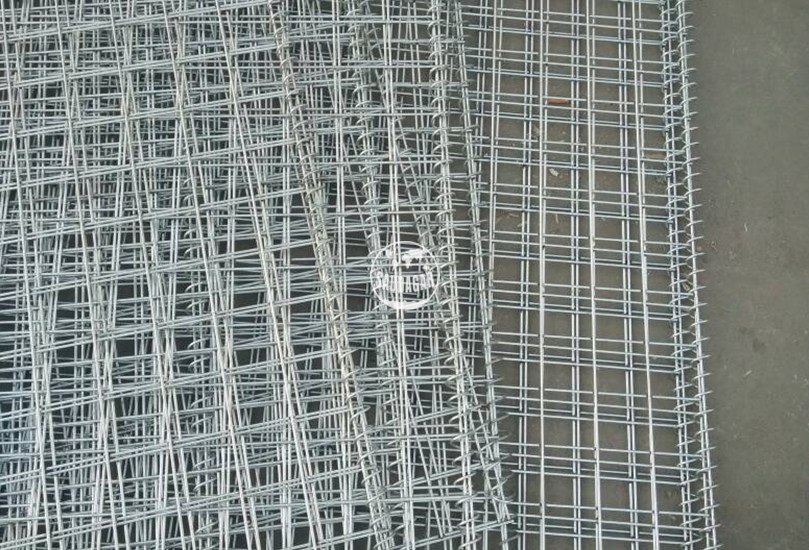

Welded Wire Fabric / Mesh / Netting

It is prefabricated steel reinforcement material that has a rectangular or square Mesh. It is manufactured from cold drawn wires which are distributed in wide permutation of wire sizes & spacing to be used in concrete structures fencing etc. It gives high strength uniformly distributed leading to economy of implementation.

There is a variety of applications which can be described as follows:

  • Fabrics are used for concrete reinforcement in construction and also precasted concrete parts.
  • It can also be used as a fence Mesh.
  • Screens for baskets, containers, trolleys, treeguards etc.
  • Wire Mesh is also used in Mining.
  • Netting is used as reinforcement for laying into glass but here the mesh is very light.

Available from 10mm to 150mm opening wire Diameter from 1.60 to 8.00mm width from .91mtr to 2.40mtr (3 feet to 8 feet) in both steel wire & S. Steel wire.

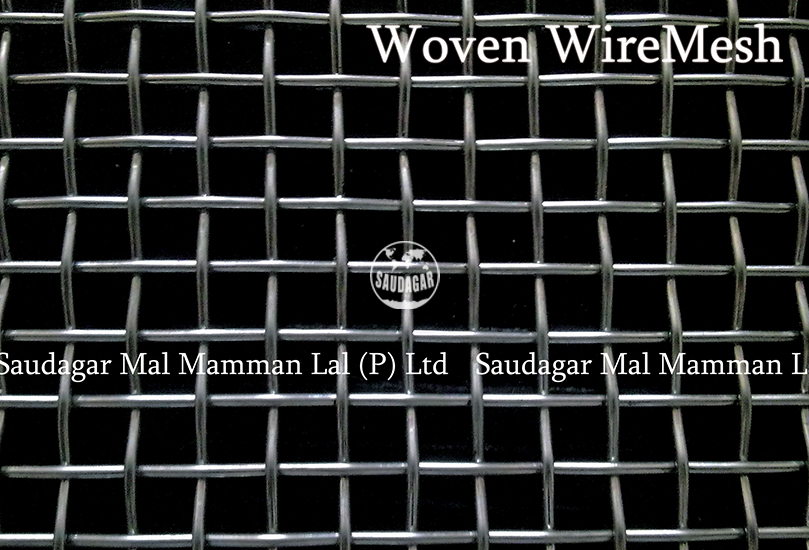

SS Wire Mesh

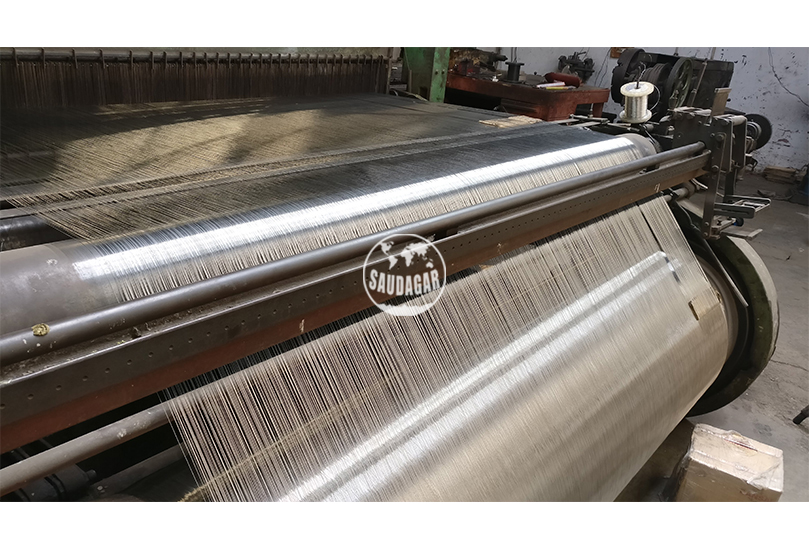

Manufactured on 'Jager' Automatic wire weaving looms. We provide wire mesh of High Quality. The Production Unit is capable of manufacturing wire Mesh upto 2.25 mtr width. We produce & stock Woven Wire Cloth in a complete range of standard specifications.

Our company has the necessary knowledge to weave non standard items when needed.

Many Industrial process involve sieving, screening, filtration and separation. Whether it is food stuff, pharmaceuticals, chemicals, fertilizers or any industrial products where sieving/filtration is important we can help. Manufactured both in Galvanized Iron & Stainless Steel.

  • Mesh : in wire cloth is the distance from the centre to the centre of Parallel wires. Thus 4 Mesh the cloth has 4 opening per linear inch.
  • Opening : means the space between adjacent parallel wires. Note its size does not effect the diameter of wire used in the cloth.
  • Diameter : ISI 280 is our recognized standard & is to be specified in fractional parts i. e. mm

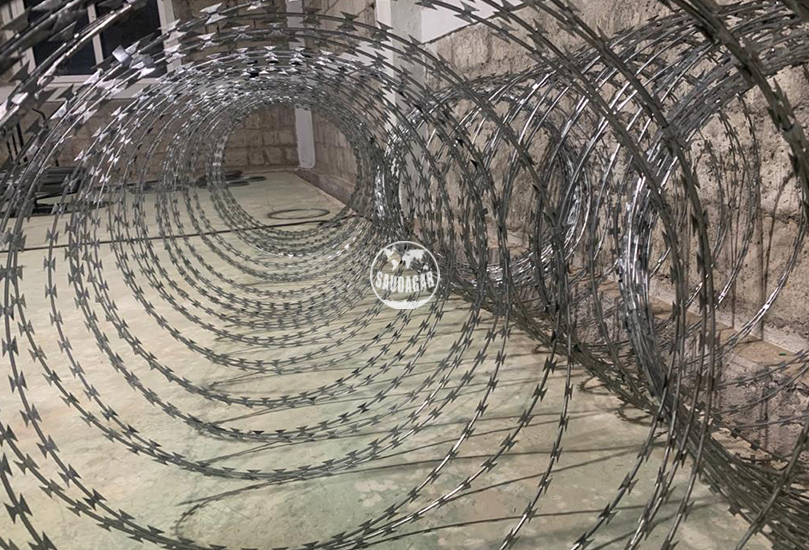

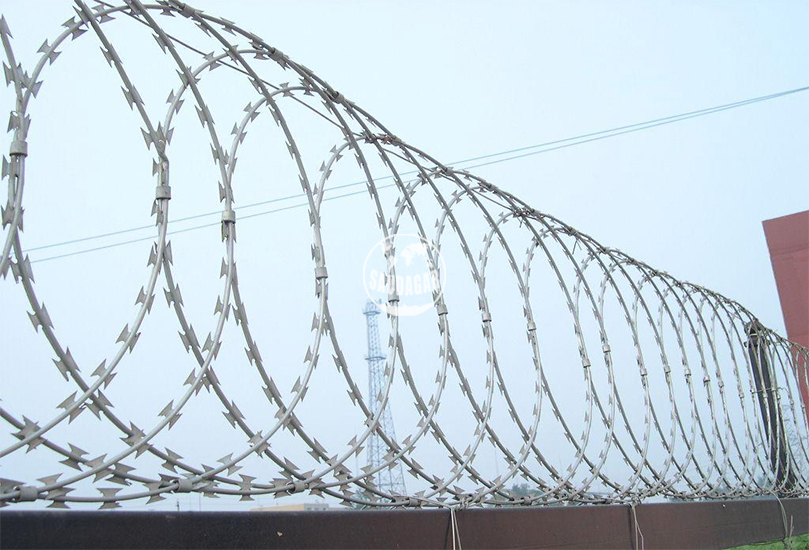

Concertina Wire or RBT is a type of Barbed wire or Razor wire that is formed in large coils which can be expanded like a Concertina.

Concertina wire consists of high tensile strength core wire and a punched steel tape with barbs. The Production process of combining the core with the steel tape is called roll forming.
